Specifications & Characteristics:

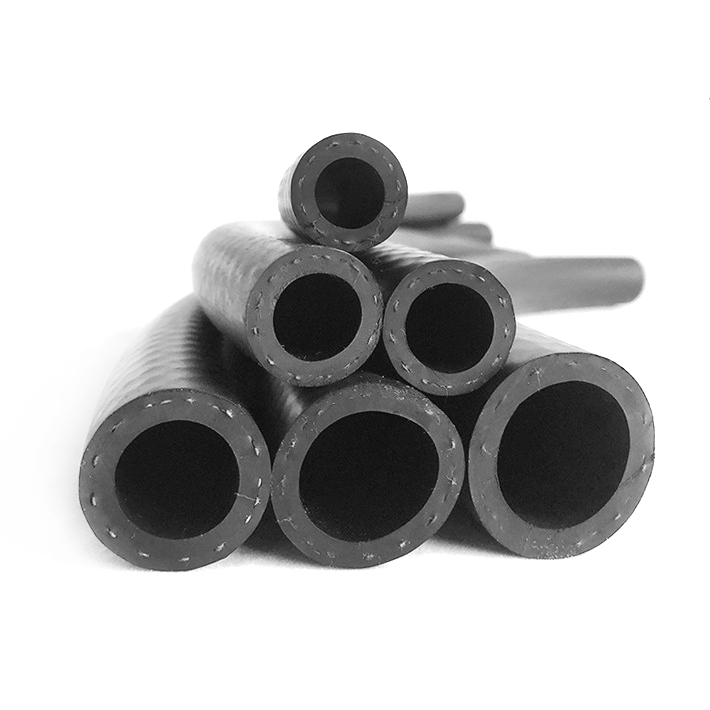

- Cooling water Hose is made of the material EPDM for delivering cooling fluid from the cooling water pot to radiator.
- Size: ID 4 mm – ID 32 mm (ID 5/32″ – ID 3/4″)
- Layers: No layer or 1 Polyester Fabric Reinforcement
- Working Temp Range: -35 °C ~ 120 °C (-95 °F ~ 250 °F)
- Standard: SAE J20 R1 / R2 / R3
- Low pressure.
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
No Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L0CW0408 | 4 (5/32) | 2 (0.079) | 0 | 20 (66) |
| L0CW0509 | 5 (3/16) | 2 (0.079) | 0 | 20 (66) |
| L0CW0510 | 5 (3/16) | 2.5 (0.100) | 0 | 20 (66) |
| L0CW0511 | 5 (3/16) | 3 (0.118) | 0 | 20 (66) |
| L0CW0610 | 6 (1/4) | 2 (0.079) | 0 | 20 (66) |
| L0CW0611 | 6 (1/4) | 2.5 (0.100) | 0 | 20 (66) |
| L0CW0612 | 6 (1/4) | 3 (0.118) | 0 | 20 (66) |
| L0CW0712 | 7 (0.275) | 2.5 (0.100) | 0 | 20 (66) |
| L0CW0813 | 8 (5/16) | 2.5 (0.100) | 0 | 20 (66) |
| L0CW1015 | 10 (3/8) | 2.5 (0.100) | 0 | 20 (66) |
| L0CW1318 | 13 (1/2) | 3 (0.118) | 0 | 20 (66) |
1 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1CW0612 | 6 (1/4) | 3 (0.118) | 1 | 20 (66) |
| L1CW0814 | 8 (5/16) | 3 (0.118) | 1 | 20 (66) |
| L1CW1016 | 10 (3/8) | 3 (0.118) | 1 | 20 (66) |
| L1CW1319 | 12.7 (1/2) | 3.5 (0.138) | 1 | 20 (66) |
| L1CW1622 | 16 (5/8) | 3.5 (0.138) | 1 | 20 (66) |
| L1CW1927 | 19 (3/4) | 4 (0.157) | 1 | 20 (66) |
| L1CW2230 | 22 (7/8) | 4 (0.157) | 1 | 20 (66) |
| L1CW2533 | 25 (1) | 4 (0.157) | 1 | 20 (66) |
| L1CW2836 | 28 (1-1/10) | 4 (0.157) | 1 | 20 (66) |
| L1CW3039 | 30 (1-1/5) | 4.5 (0.177) | 1 | 20 (66) |
| L1CW3242 | 32 (1-1/4) | 5 (0.197) | 1 | 20 (66) |
