Specifications & Characteristics:
- Disen FKM/ECO Fuel Hose meets standard SAE J30 R9 rated hose features a Fluoroelastomer (FKM) inner layer for compatibility with nearly all automotive fluids and vapors including fuel, engine oil, gear oil, transmission fluid. A second layer made from Epichlorohydrin (ECO) rubber makes the hose in economic price. An embedded aramid fiber (AR) braid serves as reinforcement while an outer layer made from Epichlorohydrin (ECO) rubber is highly ozone resistance and gives it a much higher maximum operating temperature than Nitrile rubber.
- Premium Material, Extremely Flexible, Uniform Braid,
Smooth Inner Wall. - Size: ID 6 mm – ID 19 mm (ID 1/4″ – ID 3/4″)

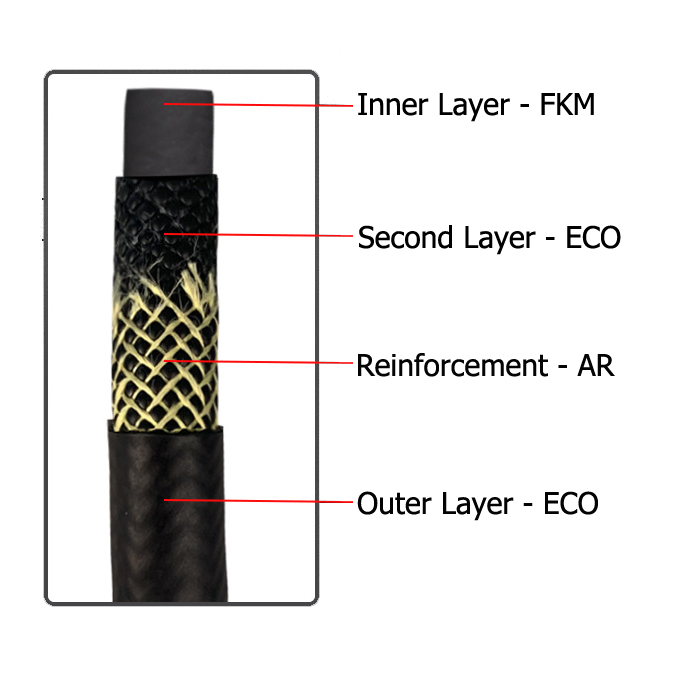

- Layers: FKM + ECO + AR + ECO.
- Working Temp Range: -40 °C ~ 150 °C (-120 °F ~ 300 °F)
- High working pressure Max. 20 bar, burst pressure Max. 60 bar.
- Standard: SAE J30 R9
- OEM logo words, size data can be printed on hose.
Tell us which parts do you need?
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1FI0612 | 6 (1/4) | 3 (0.118) | 4 | 20 (66) |
| L1FI0814 | 8 (5/16) | 3 (0.118) | 4 | 20 (66) |
| L1FI1016 | 10 (3/8) | 3 (0.118) | 4 | 20 (66) |
| L1FI1219 | 12 (1/2) | 3.5 (0.138) | 4 | 20 (66) |
| L1FI1624 | 16 (5/8) | 4 (0.157) | 4 | 20 (66) |
| L1FI1927 | 19 (3/4) | 4 (0.157) | 4 | 20 (66) |
