Specifications & Characteristics:

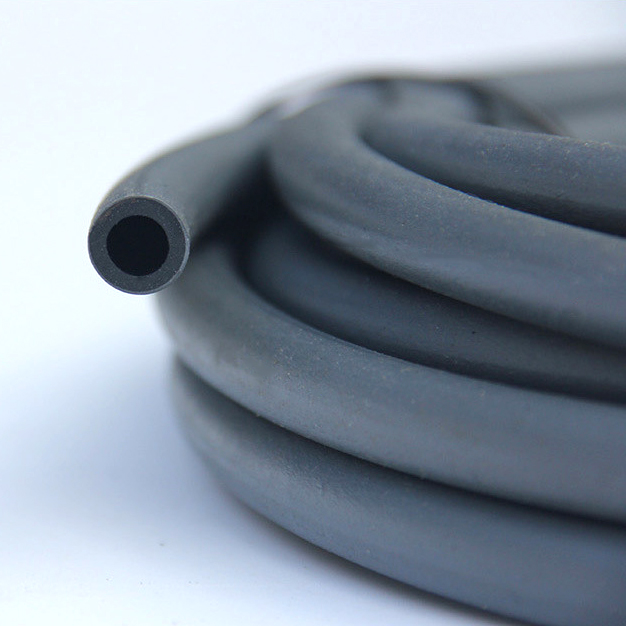

- Fuel hose for outside the fuel tank transporting fuel.
Inner material is NBR for fuel resistance, outer material is CSM for Ozone weathering resistance excellently.
Not suitable for assembly in the fuel tank. - Size: ID 4 mm – ID 19 mm (ID 5/32″ – ID 3/4″)
- Layers: No layer or 1 Polyester Fabric Reinforcement
- Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)

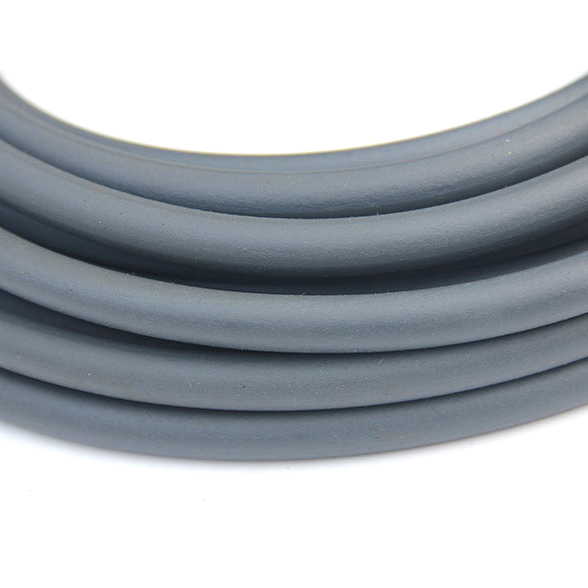

- Colors: NBR with Black, CSM with Gray.
- Low pressure
- Standard: SAE 30R7
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
Fuel Hose NBR+CSM no Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L0NCS0408 | 4 (5/32) | 2 (0.079) | 0 | 20 (66) |
| L0NCS0509 | 5 (3/16) | 2 (0.079) | 0 | 20 (66) |
| L0NCS0510 | 5 (3/16) | 2.5 (0.100) | 0 | 20 (66) |
| L0NCS0511 | 5 (3/16) | 3 (0.118) | 0 | 20 (66) |
| L0NCS0610 | 6 (1/4) | 2 (0.079) | 0 | 20 (66) |
| L0NCS0611 | 6 (1/4) | 2.5 (0.100) | 0 | 20 (66) |
| L0NCS0612 | 6 (1/4) | 3 (0.118) | 0 | 20 (66) |
| L0NCS0711 | 7 (9/32) | 2 (0.079) | 0 | 20 (66) |
| L0NCS0712 | 7 (9/32) | 2.5 (0.100) | 0 | 20 (66) |
| L0NCS0713 | 7 (9/32) | 3 (0.118) | 0 | 20 (66) |
| L0NCS0812 | 8 (5/16) | 2 (0.079) | 0 | 20 (66) |
| L0NCS0813 | 8 (5/16) | 2.5 (0.118) | 0 | 20 (66) |
| L0NCS0814 | 8 (5/16) | 3 (0.118) | 0 | 20 (66) |
| L0NCS1014 | 10 (3/8) | 2 (0.079) | 0 | 20 (66) |
| L0NCS1015 | 10 (3/8) | 2.5 (0.118) | 0 | 20 (66) |
| L0NCS1016 | 10 (3/8) | 3 (0.118) | 0 | 20 (66) |
Fuel Hose NBR+CSM 1 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1NCS0612 | 6 (3/8) | 3 (0.118) | 1 | 20 (66) |
| L1NCS0814 | 8 (5/16) | 3 (0.118) | 1 | 20 (66) |
| L1NCS0816 | 8 (5/16) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1016 | 10 (5/8) | 3 (0.118) | 1 | 20 (66) |
| L1NCS1018 | 10 (5/8) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1218 | 12 (15/32) | 3 (0.118) | 1 | 20 (66) |
| L1NCS1220 | 12 (15/32) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1319 | 13 (1/2) | 3 (0.118) | 1 | 20 (66) |
| L1NCS1321 | 13 (1/2) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1420 | 14 (9/16) | 3 (0.118) | 1 | 20 (66) |
| L1NCS1422 | 14 (9/16) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1622 | 16 (5/8) | 3 (0.118) | 1 | 20 (66) |
| L1NCS1624 | 16 (5/8) | 4 (0.157) | 1 | 20 (66) |
| L1NCS1927 | 19 (3/4) | 4 (0.157) | 1 | 20 (66) |
