Specifications & Characteristics:

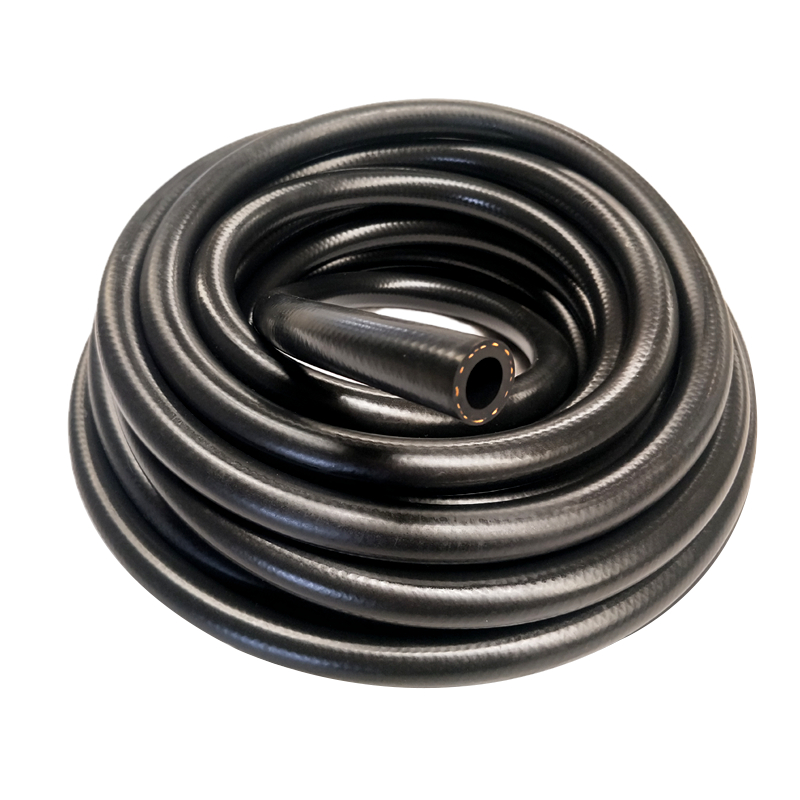

- Premium Fuel hose is made of the material NBR / NBR.
It is required for fuel pumps in fuel tank and are against fuel resistant excellently.
Not suitable for assembly outside the fuel tank.
(Choose our NBR / CSM material for outside the fuel tank.) - Size: ID 4 mm – ID 19 mm (ID 5/32″ – ID 3/4″)
- Layers: No layer or 1 Polyester Fabric Reinforcement
- Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)
- Low pressure.
- Standard: SAE 30R7
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
No Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L0NN0408 | 4 (5/32) | 2 (0.079) | 0 | 20 (66) |
| L0NN0509 | 5 (3/16) | 2 (0.079) | 0 | 20 (66) |
| L0NN0510 | 5 (3/16) | 2.5 (0.100) | 0 | 20 (66) |
| L0NN0511 | 5 (3/16) | 3 (0.118) | 0 | 20 (66) |
| L0NN0610 | 6 (1/4) | 2 (0.079) | 0 | 20 (66) |
| L0NN0611 | 6 (1/4) | 2.5 (0.100) | 0 | 20 (66) |
| L0NN0612 | 6 (1/4) | 3 (0.118) | 0 | 20 (66) |
| L0NN0712 | 7 (0.275) | 2.5 (0.118) | 0 | 20 (66) |
| L0NN0813 | 8 (5/16) | 2.5 (0.118) | 0 | 20 (66) |
| L0NN1015 | 10 (3/8) | 2.5 (0.118) | 0 | 20 (66) |
| L0NN1318 | 13 (1/2) | 2.5 (0.118) | 0 | 20 (66) |
1 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1NN0612 | 3 (1/4) | 3 (0.118) | 1 | 20 (66) |
| L1NN0814 | 4 (5/16) | 3 (0.118) | 1 | 20 (66) |
| L1NN1016 | 6 (3/8) | 3 (0.118) | 1 | 20 (66) |
| L1NN1319 | 8 (1/2) | 3 (0.118) | 1 | 20 (66) |
| L1NN1622 | 10 (5/8) | 3 (0.118) | 1 | 20 (66) |
| L1NN1927 | 19 (3/4) | 4 (0.157) | 1 | 20 (66) |
