Specifications & Characteristics:
- Premium Fuel hose is made of the material NBR / Synthetic Rubber (excellent UV and Ozone resistant).
Not suitable for assembly in the fuel tank. (Choose our NBR / NBR material for assembly in the fuel tank.) - Size: ID 4 mm – ID 32 mm (ID 5/32″ – ID 3/4″)

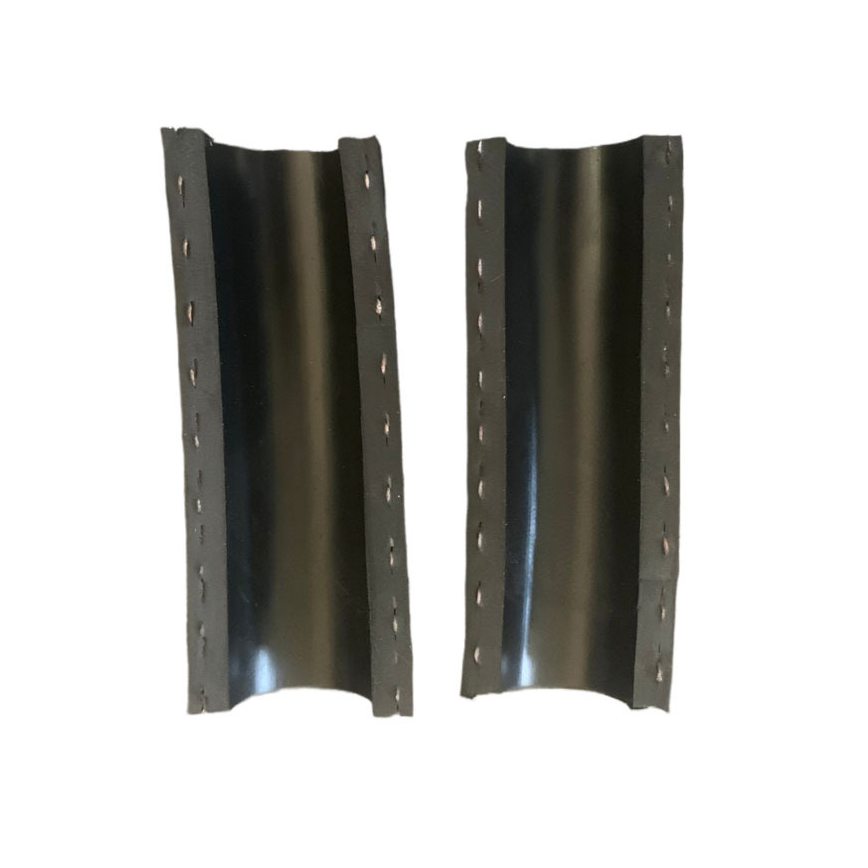

- Layers: No layer or 1 Polyester Fabric Reinforcement
- Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)
- Colors: NBR in Black, Synthetic Rubber in Black.
- Low pressure.
- Standard: SAE 30R7
- OEM logo, words, size data printed on hose
Tell us which parts do you need?

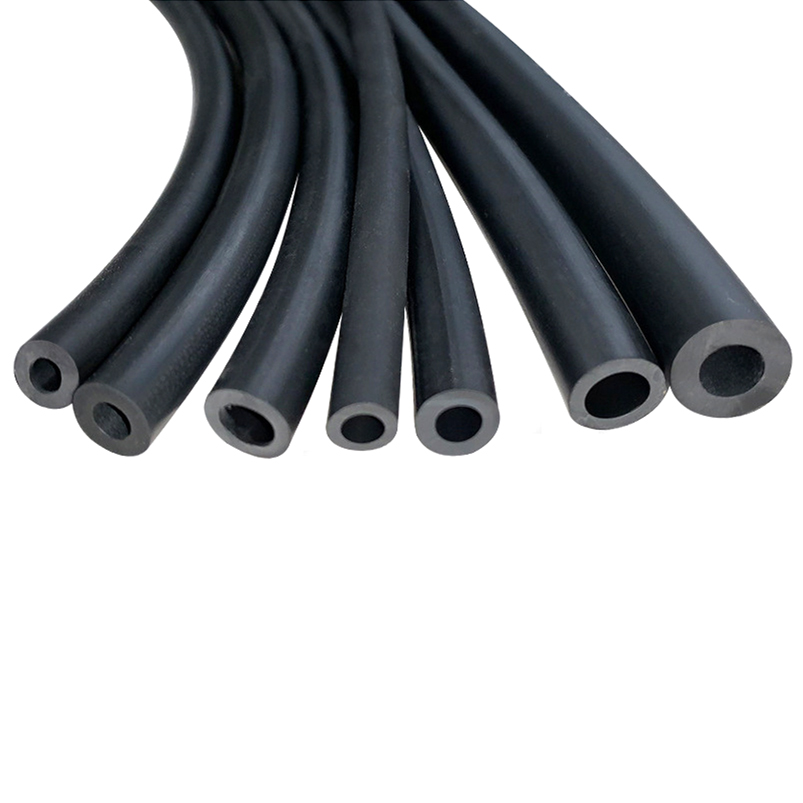

No Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L0NS0408 | 4 (5/32) | 2 (0.079) | 0 | 20 (66) |
| L0NS0509 | 5 (3/16) | 2 (0.079) | 0 | 20 (66) |
| L0NS0510 | 5 (3/16) | 2.5 (0.100) | 0 | 20 (66) |
| L0NS0511 | 5 (3/16) | 3 (0.118) | 0 | 20 (66) |
| L0NS0610 | 6 (1/4) | 2 (0.079) | 0 | 20 (66) |
| L0NS0611 | 6 (1/4) | 2.5 (0.100) | 0 | 20 (66) |
| L0NS0612 | 6 (1/4) | 3 (0.118) | 0 | 20 (66) |
| L0NS0712 | 7 (0.275) | 2.5 (0.118) | 0 | 20 (66) |
| L0NS0813 | 8 (5/16) | 2.5 (0.118) | 0 | 20 (66) |
| L0NS1015 | 10 (3/8) | 2.5 (0.118) | 0 | 20 (66) |
| L0NS1318 | 13 (1/2) | 2.5 (0.118) | 0 | 20 (66) |

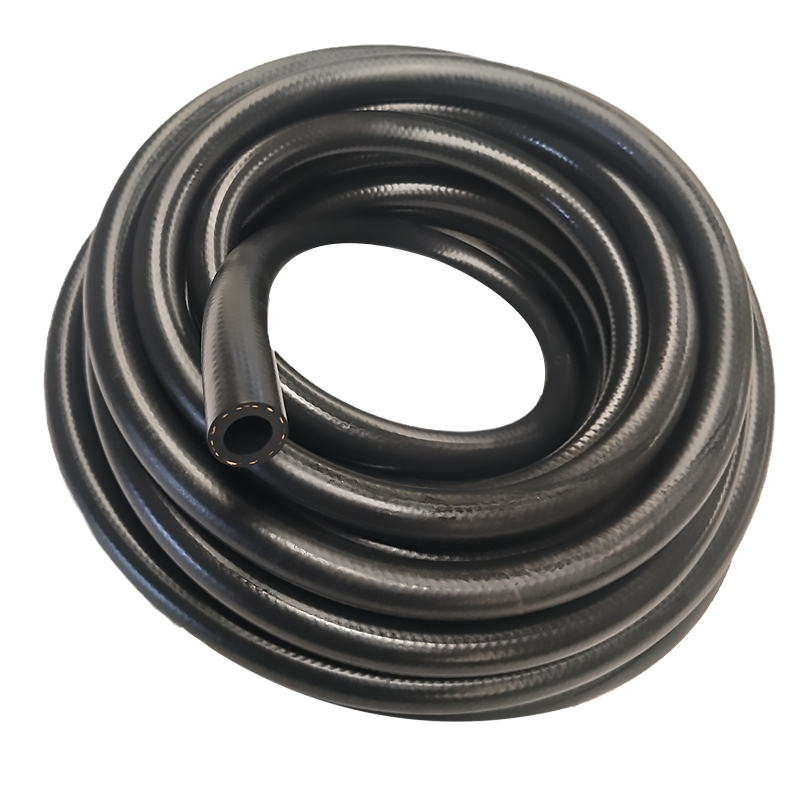

1 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1NS0612 | 3 (1/4) | 3 (0.118) | 1 | 20 (66) |
| L1NS0814 | 4 (5/16) | 3 (0.118) | 1 | 20 (66) |
| L1NS1016 | 6 (3/8) | 3 (0.118) | 1 | 20 (66) |
| L1NS1319 | 8 (1/2) | 3 (0.118) | 1 | 20 (66) |
| L1NS1622 | 10 (5/8) | 3 (0.118) | 1 | 20 (66) |
| L1NS1927 | 19 (3/4) | 4 (0.157) | 1 | 20 (66) |
| L1NS2230 | 22 (7/8) | 4 (0.157) | 1 | 20 (66) |
| L1NS2533 | 25 (1) | 4 (0.157) | 1 | 20 (66) |
| L1NS2836 | 28 (1-1/10) | 4 (0.157) | 1 | 20 (66) |
| L1NS3039 | 30 (1-1/5) | 4.5 (0.177) | 1 | 20 (66) |
| L1NS3242 | 32 (1-1/4) | 5 (0.197) | 1 | 20 (66) |
