Specifications & Characteristics:

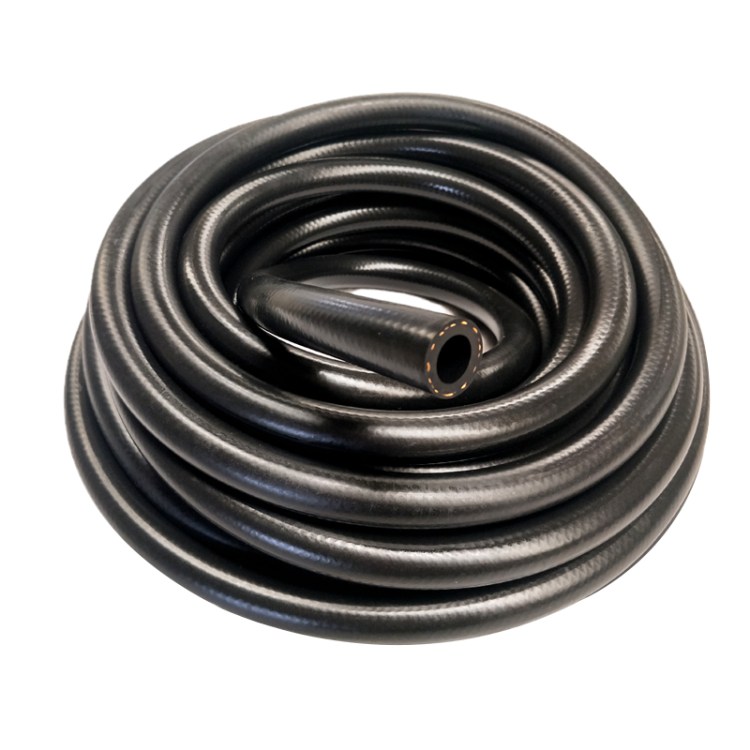

- Fuel hose standard SAE J30 R6 for outside the fuel tank transporting fuel.
Inner material is NBR for fuel resistance, outer material is CSM or CR for Ozone weathering resistance excellently.
Not suitable for assembly in the fuel tank. - Size: ID 4 mm – ID 25 mm (ID 5/32″ – ID 1″)

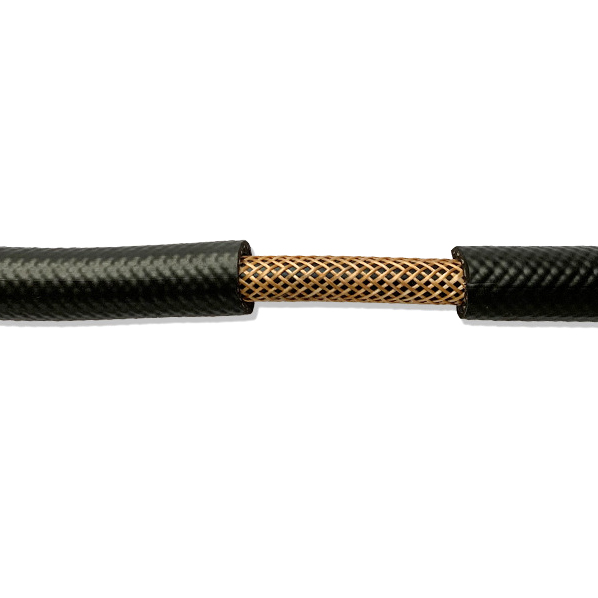

- Layers: 1 Polyester Fabric Reinforcement
- Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)
- Colors: NBR in Black, CSM in Black.
- Standard: SAE 30R6
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
| Part No. | ID mm (inch) | Wall mm (inch) | Reinforcement Layer | Length m (foot) |
| FJ30R6-0612 | 6 (1/4) | 3 (0.118) | 1 | 20 (66) |
| FJ30R6-I0814 | 8 (5/16) | 3 (0.118) | 1 | 20 (66) |
| FJ30R6-1016 | 10 (3/8) | 3 (0.118) | 1 | 20 (66) |
| FJ30R6-1219 | 12 (1/2) | 3.5 (0.138) | 1 | 20 (66) |
| FJ30R6-1320 | 13 (1/2) | 3.5 (0.138) | 1 | 20 (66) |
| FJ30R6-1624 | 16 (5/8) | 4 (0.157) | 1 | 20 (66) |
| FJ30R6-1927 | 19 (3/4) | 4 (0.157) | 1 | 20 (66) |
| FJ30R6-2533 | 25 (1) | 4 (0.157) | 1 | 20 (66) |
