Specifications & Characteristics:

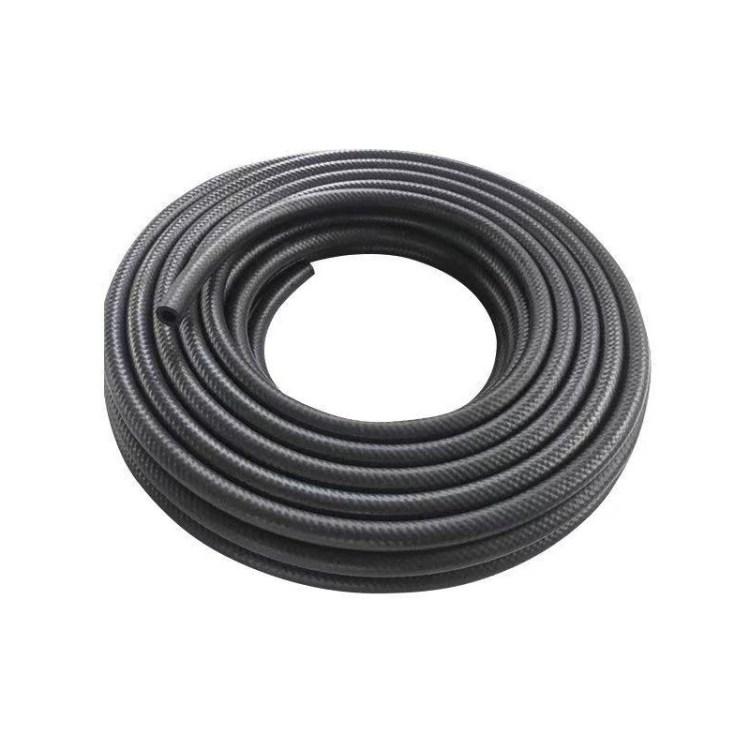

- Premium Fuel injection hose designed for the high pressure EFI engines, as well as transport E-85, diesel, bio-diesel and all standard gasoline.
- Premium Material, Extremely Flexible, Uniform Braid,
Smooth Inner Wall. - Size: ID 6 mm – ID 19 mm (ID 1/4″ – ID 3/4″)
- Layers: 1 or 2 layers high stress Fabric Reinforcement.
- Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)
- High working pressure Max. 20 bar, burst pressure Max. 60 bar.
- Standard: SAE J30 R9
- OEM logo words, size data can be printed on hose.
Tell us which parts do you need?
Fuel Injection Hose 1 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L1FI0612 | 6 (1/4) | 3 (0.118) | 1 | 20 (66) |
| L1FI0814 | 8 (5/16) | 3 (0.118) | 1 | 20 (66) |
| L1FI1016 | 10 (3/8) | 3 (0.118) | 1 | 20 (66) |
| L1FI1218 | 12 (1/2) | 3 (0.118) | 1 | 20 (66) |
| L1FI1420 | 14 (11/20) | 3 (0.118) | 1 | 20 (66) |
| L1FI1622 | 16 (5/8) | 3 (0.118) | 1 | 20 (66) |
| L1FI1926 | 19 (3/4) | 3.5 (0.138) | 1 | 20 (66) |
Fuel Injection Hose 2 Layer reinforced
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length m (foot) |
| L2FI0613 | 6 (1/4) | 3.5 (0.138) | 2 | 20 (66) |
| L2FI0815 | 8 (5/16) | 3.5 (0.138) | 2 | 20 (66) |
| L2FI1017 | 10 (3/8) | 3.5 (0.138) | 2 | 20 (66) |
| L2FI1220 | 12 (1/2) | 4 (0.157) | 2 | 20 (66) |
