Specifications & Characteristics:
- Hump Hose can effectively reduce the vibration of the steel pipe and effectively prevent the damage of the steel pipe caused by the vibration.
- Size: ID 12 mm – ID 152 mm (ID 1/2″ – ID 6″)
- Steel O Ring Q’ty: 0, 1, 2, 3, 4, 5, 6, 7
- Layers: Polyester Fabric Reinforcement
- Working Temp Range: -50 °C ~ 180 °C (-120 °F ~ 360 °F)
- Colors: Blue, Black, Red, Orange, Green, Gray
- Available with Fluorosilicone or Fluorocarbon Liner
- Standard: SAE J20
- Ozone & Oil Splash Resistant
- OEM logo printed on hose
Tell us which parts do you need?

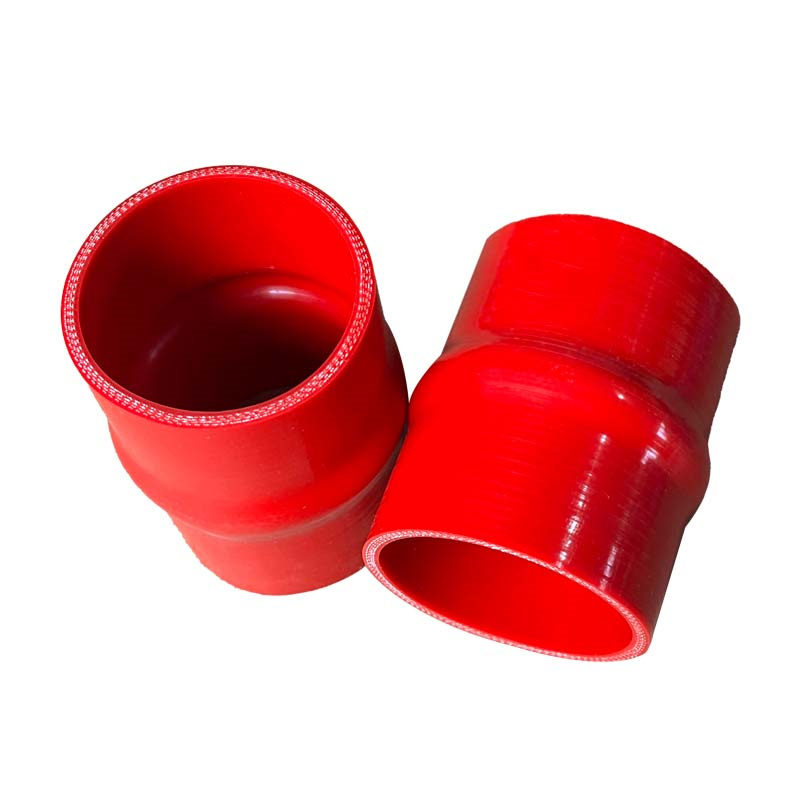

Hump Hose Without Steel Ring
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length mm (inch) |
| DS-H12R0 | 12 (1/2) | 4 (0.157) | 3 | 76 (3) |
| DS-H16R0 | 16 (5/8) | 4 (0.157) | 3 | 76 (3) |
| DS-H19R0 | 19 (3/4) | 4 (0.157) | 3 | 76 (3) |
| DS-H25R0 | 25 (1) | 4 (0.157) | 3 | 76 (3) |
| DS-H32R0 | 32 (1-1/4) | 4 (0.157) | 3 | 76 (3) |
| DS-H38R0 | 38 (1-1/2) | 4 (0.157) | 3 | 76 (3) |
| DS-H45R0 | 45 (1-3/4) | 4 (0.157) | 3 | 76 (3) |
| DS-H51R0 | 51 (2) | 5 (0.197) | 4 | 76 (3) 100 (4) |
| DS-H57R0 | 57 (2-1/4) | 5 (0.197) | 4 | 76 (3) 100 (4) |
| DS-H63R0 | 63 (2-1/2) | 5 (0.197) | 4 | 100 (4) 125 (5) |
| DS-H70R0 | 70 (2-3/4) | 5 (0.197) | 4 | 100 (4) 125 (5) |
| DS-H76R0 | 76 (3) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) |
| DS-H89R0 | 89 (3-1/2) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) |
| DS-H95R0 | 95 (3-3/4) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) |
| DS-H102R0 | 102 (4) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) |
| DS-H127R0 | 127 (5) | 7 (0.276) | 6 | 100 (4) 125 (5) 150 (6) |
| DS-H152R0 | 152 (6) | 7 (0.276) | 6 | 100 (4) 125 (5) 150 (6) |

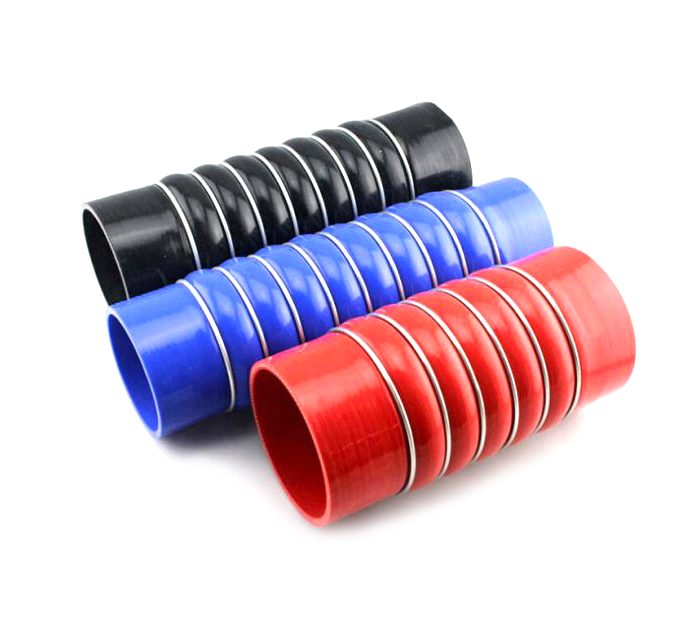

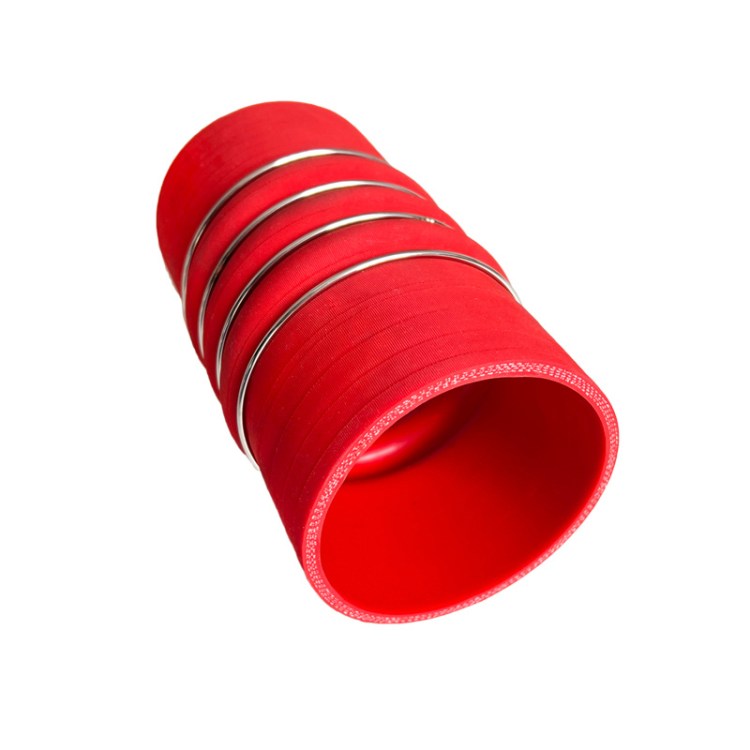

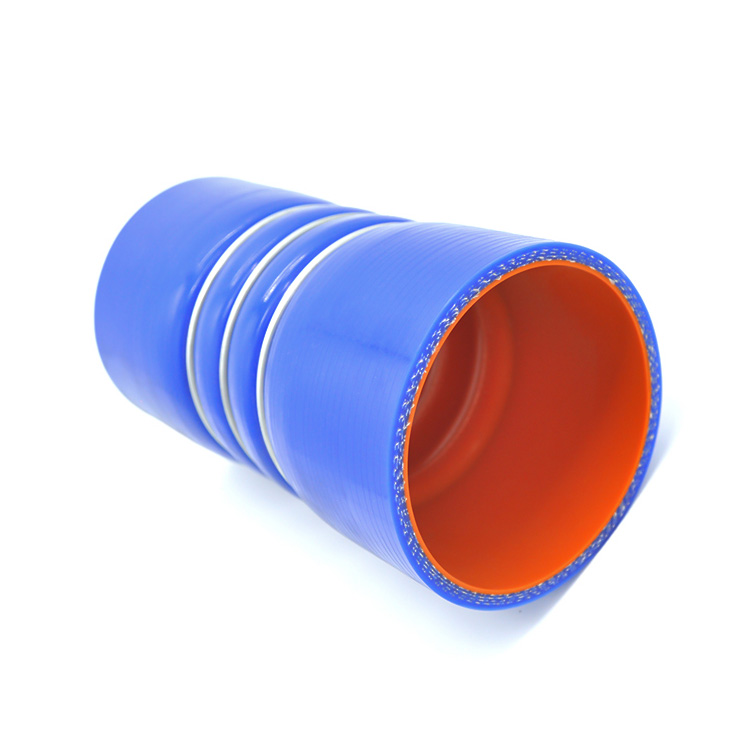

Hump Hose with Steel Ring
| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length mm (inch) |
| DS-H51R1 DS-H51R2 DS-H51R3 DS-H51R4 DS-H51R5 DS-H51R6 DS-H51R7 | 51 (2) | 5 (0.197) | 4 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H63R1 DS-H63R2 DS-H63R3 DS-H63R4 DS-H63R5 DS-H63R6 DS-H63R7 | 63 (2-1/2) | 5 (0.197) | 4 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H76R1 DS-H76R2 DS-H76R3 DS-H76R4 DS-H76R5 DS-H76R6 DS-H76R7 | 76 (3) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H89R1 DS-H89R2 DS-H89R3 DS-H89R4 DS-H89R5 DS-H89R6 DS-H89R7 | 89 (3-1/2) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H102R1 DS-H102R2 DS-H102R3 DS-H102R4 DS-H102R5 DS-H102R6 DS-H102R7 | 102 (4) | 6 (0.236) | 5 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H127R1 DS-H127R2 DS-H127R3 DS-H127R4 DS-H127R5 DS-H127R6 DS-H127R7 | 127 (5) | 7 (0.276) | 6 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
| DS-H152R1 DS-H152R2 DS-H152R3 DS-H152R4 DS-H152R5 DS-H152R6 DS-H152R7 | 152 (6) | 7 (0.276) | 6 | 100 (4) 125 (5) 150 (6) 175 (7) 200 (8) 250 (10) 280 (11) |
Other Wall thickness or Length can be customized by your requirement.
