Specifications & Characteristics:

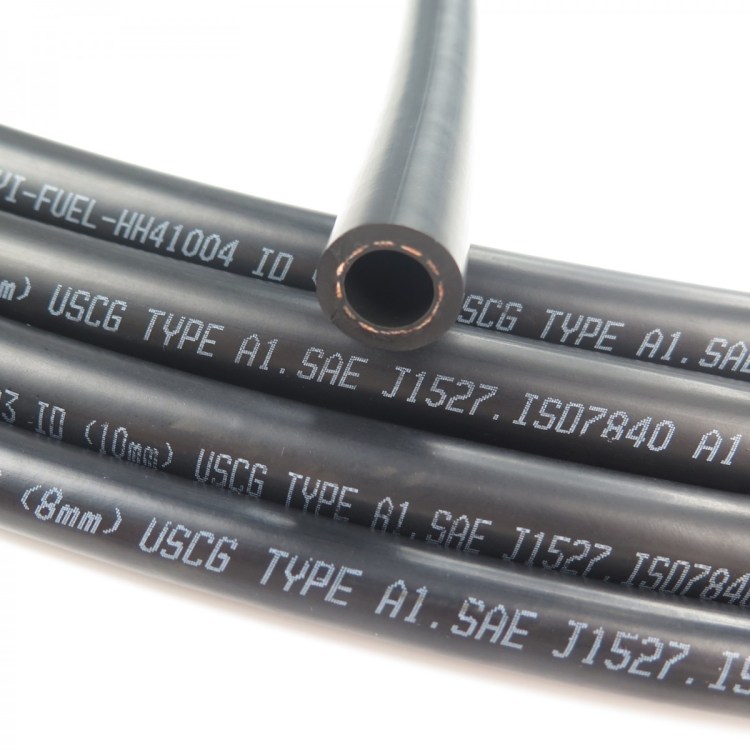

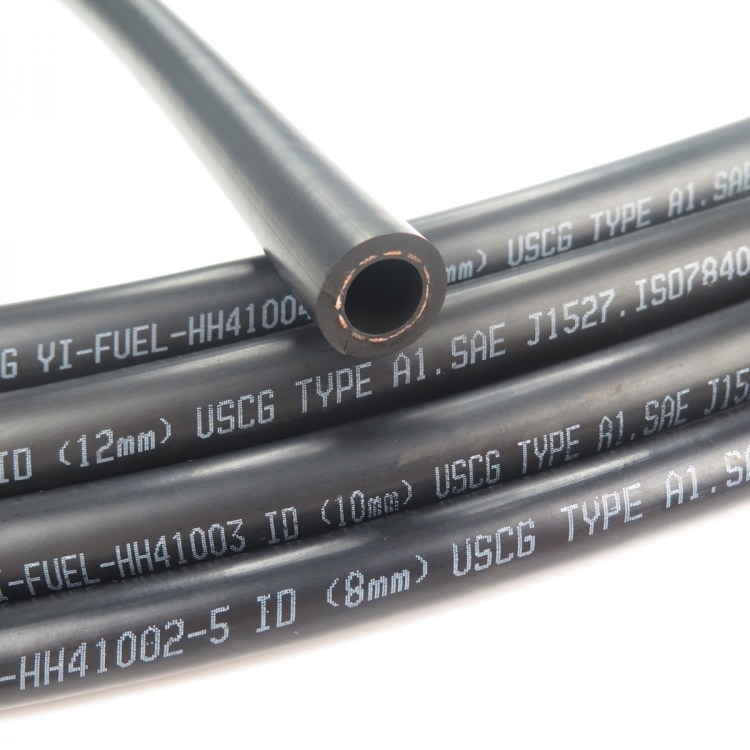

- Marine Fuel Hoses SAE J1527 is made of NBR inner and CR outer. Compatible with gasoline,diesel and E85,etc. Widely used for supplying fuel to motors in boats or marine.
- Standard: USCG/SAE J1527-A1, ISO 7840 Type A1 / A2
- Size: ID 6 mm – ID 38 mm (ID 1/4″ – ID 1-1/2″)
- Layers: Type A1 with 1 Polyester Fabric Reinforcement,

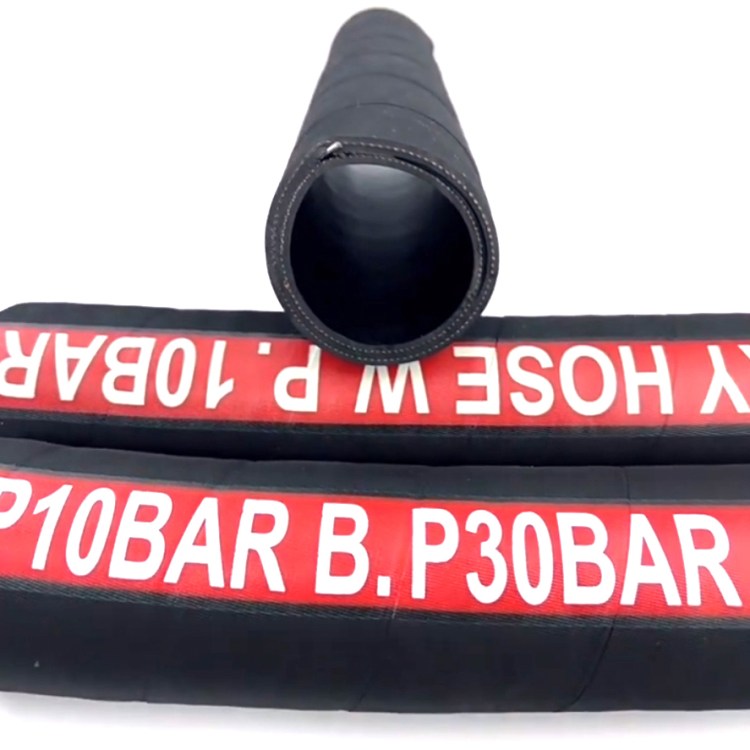

Type A2 with 2 fabric cord braid & wire spiral & Conductive copper wire. - Working Temp Range: -30 °C ~ 120 °C (-90 °F ~ 250 °F)
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
| Part No. | ID mm (inch) | OD mm (inch) | Type | W.P. Bar (Psi) | Reinforcement ply | Length m (ft) |
| MFH05-A1 | 4.8 (3/16) | 10.5 (0.413) | A1 | 30 (435) | 1 fabric non-wire | 50 (165) |
| MFH06-A1 | 6.4 (1/4) | 13.0 (0.512) | A1 | 28 (400) | 1 fabric non-wire | 50 (165) |
| MFH08-A1 | 8 (5/16) | 14.5 (0.571) | A1 | 28 (400) | 1 fabric non-wire | 50 (165) |
| MFH10-A1 | 10 (3/8) | 16.5 (0.650) | A1 | 28 (400) | 1 fabric non-wire | 50 (165) |
| MFH13-A1 | 13 (1/2) | 20.5 (0.807) | A1 | 26 (380) | 1 fabric non-wire | 50 (165) |
| MFH16-A1 | 16 (5/8) | 23.5 (0.925) | A1 | 24 (350) | 1 fabric non-wire | 50 (165) |
| MFH19-A2 | 19 (3/4) | 30.5 (1.201) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH125-A2 | 25 (1) | 36.9 (1.453) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH32-A2 | 32 (1-1/4) | 45 (1.772) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH38-A2 | 38 (1-1/2) | 51.5 (2.028) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH51-A2 | 51 (2) | 64.5 (2.539) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH64-A2 | 64 (2-1/2) | 78.5 (3.091) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH76-A2 | 76 (3) | 90.8 (3.575) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH89-A2 | 89 (3-1/2) | 106 (4.173) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
| MFH102-A2 | 102 (4) | 119 (4.685) | A2 | 10 (145) | 2 fabric wire spiral | 60 (197) |
