Specifications & Characteristics:

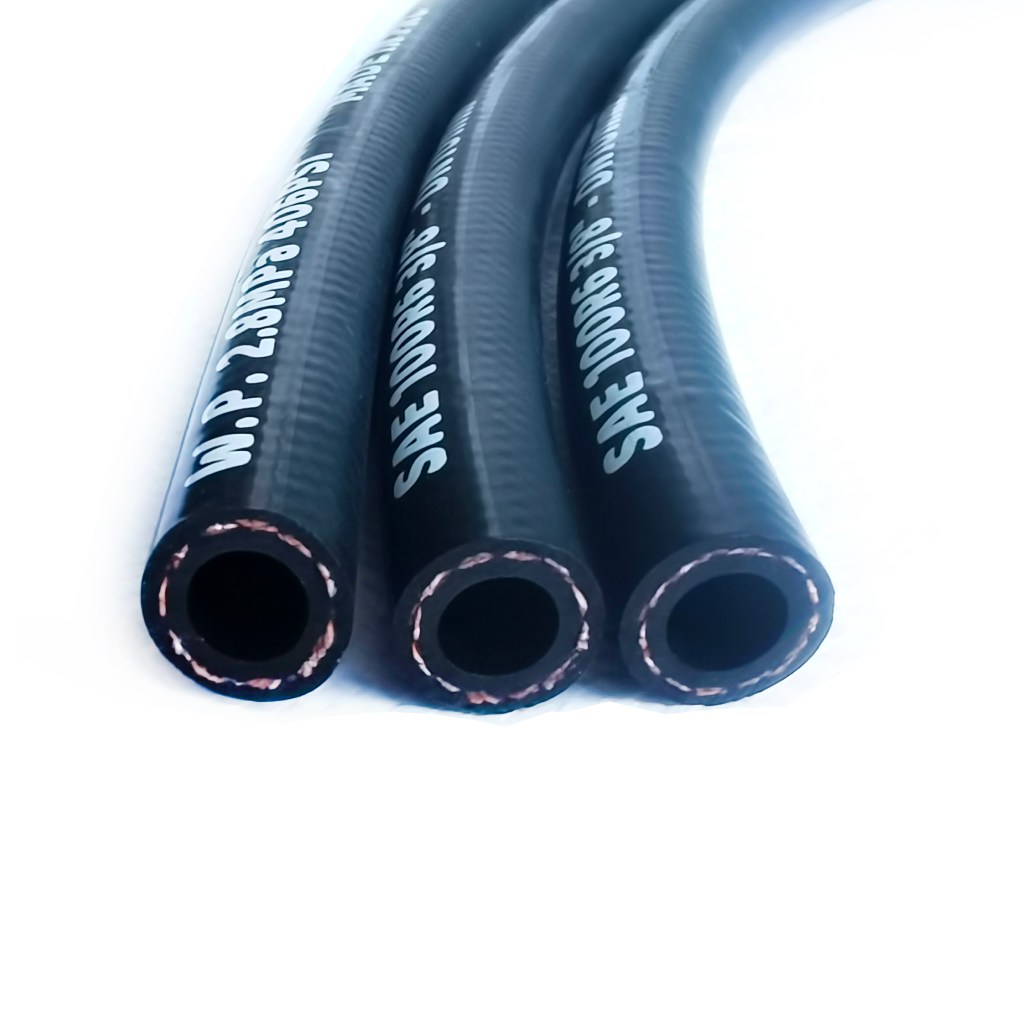

- Oil Hose Line SAE 100 R6 designed for transporting hydraulic oil and other mineral oils.
- Inner material is NBR for oil resistance, outer material is CR or synthetic rubber for Ozone weathering resistance excellently. Single tensile braids inter woven.
- Size: ID 5 mm – ID 50 mm (ID 3/16″ – ID 1″)
- Working Temp Range: -40 °C ~ 100 °C (-82 °F ~ 212 °F)
- Colors: NBR in Black, CR in Black.
- Standard: SAE J517 R6 / SAE 100 R6
- OEM logo, words, size data printed on hose
Tell us which parts do you need?
| Part No. | Size mm (inch) | ID (mm) min / max | OD (mm) min / max | Max W.P. bar / psi | Min B.P. bar / psi | B.R. mm |
| OH100R6-05 | 5 (3/16) | 4.5 / 5.4 | 10.3 / 11.9 | 35 / 510 | 140 / 2030 | 50 |
| OH100R6-06 | 6.3 (1/4) | 6.1 / 7.0 | 11.9 / 13.5 | 28 / 410 | 112 / 1620 | 65 |
| OH100R6-08 | 8 (5/16) | 7.6 / 8.5 | 13.5 /15.1 | 28 / 410 | 112 / 1620 | 75 |
| OH100R6-10 | 10 (3/8) | 9.2 / 10.1 | 15.1 / 16.7 | 28 / 410 | 112 / 1620 | 75 |
| OH100R6-12 | 12.7 (1/2) | 12.4 / 13.5 | 19.0 / 20.6 | 28 / 410 | 112 / 1620 | 100 |
| OH100R6-16 | 16 (5/8) | 15.6 / 16.7 | 22.2 / 23.8 | 24 / 350 | 98 / 1420 | 125 |
| OH100R6-19 | 19 (3/4) | 18.7 / 19.8 | 25.4 / 27.8 | 21 / 310 | 84 / 1220 | 150 |
| OH100R6-25 | 25 (1) | 24 / 26 | 33 / 37 | 17 / 255 | 60 / 900 | 300 |
| OH100R6-32 | 32 (1-1/4) | 31 / 33 | 41 / 44 | 14 / 210 | 50 / 750 | 400 |
