Specifications & Characteristics:

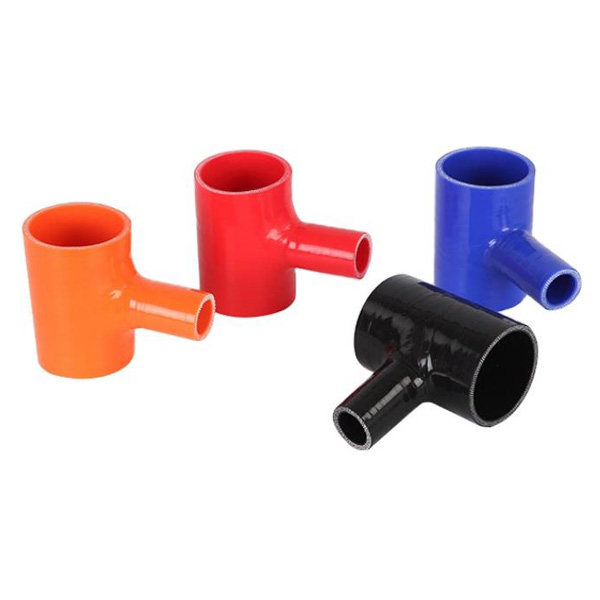

- T Pieces Coupler allows you to connect three pipes without steel pipe welding.
- Ozone & Oil Splash Resistant
- Size: T Hose ID 6 mm 51 mm (T Hose ID 1/4″ – 2″)
- Layers: Polyester Fabric Reinforcement
- Working Temp Range: -50 °C ~ 180 °C (-120 °F ~ 360 °F)
- Colors: Blue, Black, Red, Orange, Green, Gray
- Available with Fluorosilicone or Fluorocarbon Liner
- Standard: SAE J20
- Ozone & Oil Splash Resistant
- OEM logo printed on hose
Tell us which parts do you need?

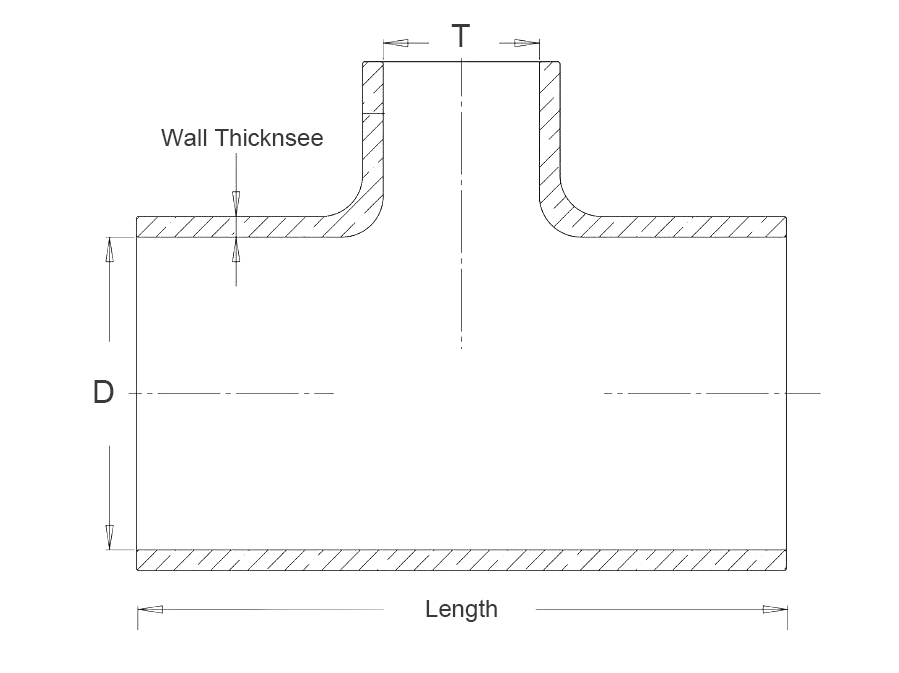

| Part No. | ID mm (inch) | Wall mm (inch) | Layer | Length mm (inch) |
| DS-T25D25 | 25-25 (1 – 1) | 4 (0.157) | 3 | 76 (3) 125 (5) |
| DS-T25D32 | 25-32 (1 – 1-1/4) | 4 (0.157) | 3 | 76 (3) 125 (5) |
| DS-T25D38 | 25-38 (1 – 1-1/2) | 4 (0.157) | 3 | 76 (3) 125 (5) |
| DS-T25D51 | 25-51 (1 – 2) | 4 (0.157) | 4 | 76 (3) 125 (5) |
| DS-T25D60 | 25-60 (1 – 2-3/8) | 5 (0.197) | 4 | 76 (3) 125 (5) |
| DS-T25D63 | 25-63 (1 – 2-1/2) | 5 (0.197) | 4 | 76 (3) 125 (5) |
| DS-T25D70 | 25-70 (1 – 2-3/4) | 5 (0.197) | 4 | 100 (4) 125 (5) |
| DS-T25D76 | 25-76 (1 – 3) | 6 (0.236) | 5 | 100 (4) 125 (5) |
| DS-T25D89 | 25-89 (1 – 3-1/2) | 6 (0.236) | 5 | 100 (4) 125 (5) |
