Specifications & Characteristics:

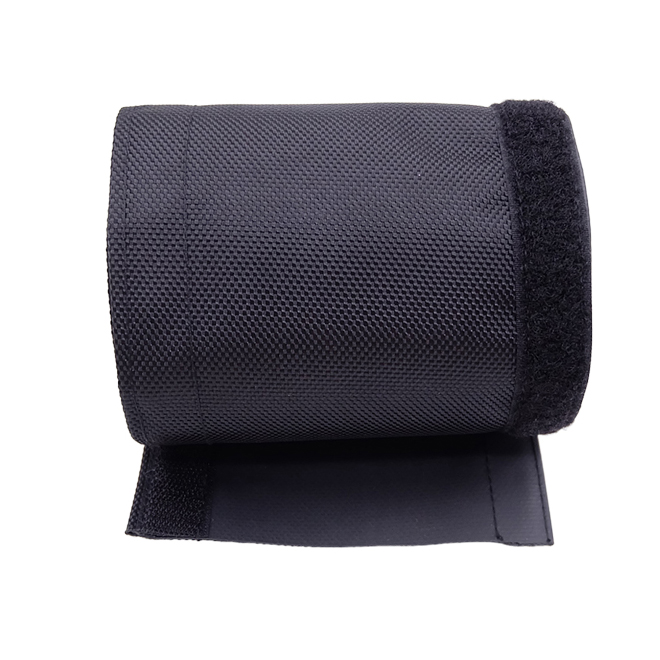

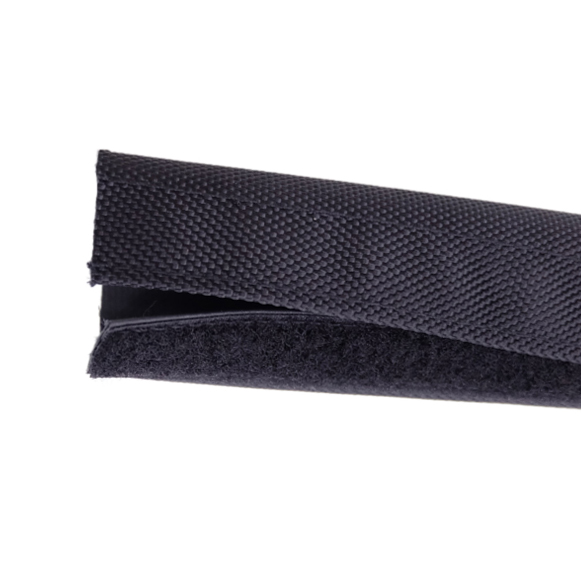

- Velcro Poly Wrap Sleeve is used to protect and bound hydraulic hoses, fuel tubes, cooling system pipes, cables and wires. Which has a variety of excellent properties, such as flame retardant, UV resistance, dust proof, easy to install, oil resistance, acid and alkali resistance, chemical agent resistance, excellent tear strength.
- Material: Polyester/PET, Nylon
- Size: ID 16 mm – ID 150 mm (ID 5/8″ – ID 6″)
- Working Temp Range: -50 °C ~ 150 °C (-120 °F ~ 300 °F)
Tell us which parts do you need?

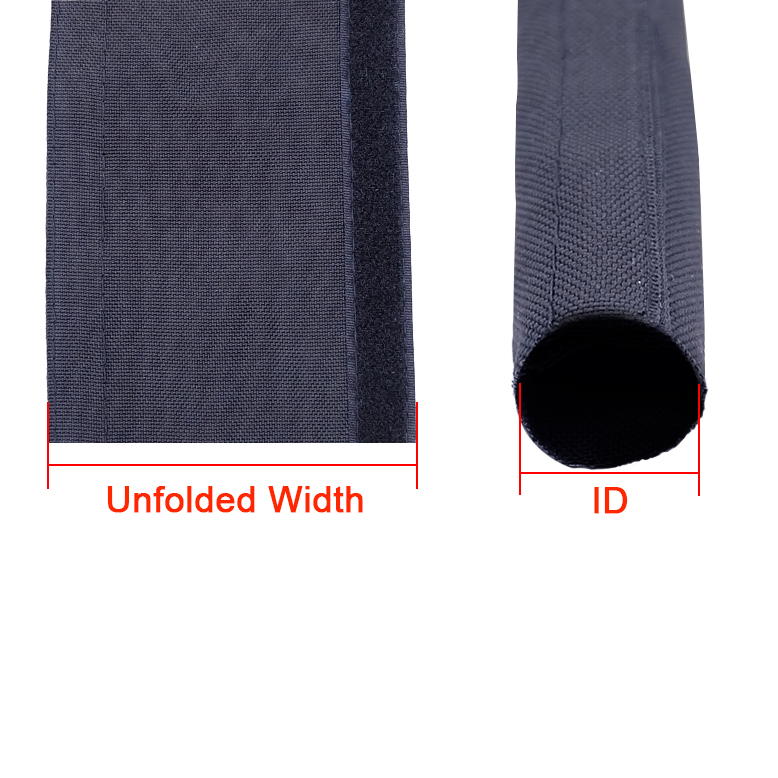

| Part No. | Max. ID mm (inch) | Unfolded Width mm (inch) | Suitable hose/wire OD mm | Length m (foot) / roll |
| DSVPS-016 | 16 (5/8) | 70 (2.75) | 10-16 | 25 (82) |
| DSVPS-020 | 20 (4/5) | 80 (3.15) | 17-20 | 25 (82) |
| DSVPS-025 | 25 (1) | 95 (3.75) | 21-25 | 25 (82) |
| DSVPS-030 | 30 (1-1/5) | 115 (4.53) | 26-30 | 25 (82) |
| DSVPS-035 | 35 (1-2/5) | 130 (5.10) | 31-35 | 25 (82) |
| DSVPS-040 | 40 (1-3/5) | 145 (5.71) | 31-40 | 25 (82) |
| DSVPS-045 | 45 (1-4/5) | 162 (6.38) | 41-45 | 25 (82) |
| DSVPS-050 | 50 (2) | 180 (7.08) | 41-50 | 25 (82) |
| DSVPS-060 | 60 (2-3/8) | 210 (8.25) | 51-60 | 25 (82) |
| DSVPS-070 | 70 (2-3/4) | 240 (9.45) | 61-70 | 25 (82) |
| DSVPS-080 | 80 (3-1/7) | 272 (10.70) | 71-80 | 25 (82) |
| DSVPS-090 | 90 (3-1/2) | 305 (12.00) | 81-90 | 25 (82) |
| DSVPS-100 | 100 (4) | 335 (13.19) | 91-100 | 25 (82) |
| DSVPS-150 | 150 (6) | 520 (20.47) | 128-150 | 25 (82) |
